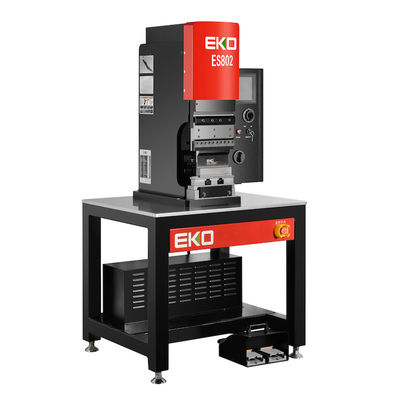

2 Axises High Quality Electrical Press Brake With Servo Motor
Feature:
1. The machine adopts PLC control, conversational operation, simple programmable steps.
2. The freedom of choice, manual, semiautomatic cycle, function of automatic cycle.
3. Mobile pedal switch, with automatic startup, emergency stop, stop to three kinds of function, high safety.
4. It has a large capacity and cooling cycle system so that the machine could run more stable.
5. In the machining process of the screen mobile controller tube bending machining is now worth, still can set single-step action,half cycle, the cycle.
6. With automatic detection errors and faults, when any abnormal function of action or any dangerous when there is a machine.
Equipment Technical Parameters
| No. |
Name |
Specification |
Measure Unit |
| 1 |
A (Length) |
960 |
mm |
| 2 |
B (Width) |
800 |
mm |
| 3 |
C (Height) |
1850 |
mm |
| 4 |
D (Opening height) |
360 |
mm |
| 5 |
E (Height in operation) |
240 |
mm |
| 6 |
F (Throat depth) |
135 |
mm |
| 7 |
G (Lower worktable length) |
200 |
mm |
| 8 |
H (Lower worktable height) |
960 |
mm |
| 9 |
Capacity |
8 |
ton |
| 10 |
Bending length |
200 |
mm |
| 11 |
Stroke |
70 |
mm |
| 12 |
Back gauge stroke |
100 |
mm |
| 13 |
Total power |
4.7 |
kw |
| 14 |
Total weight |
0.7 |
ton |
| 15 |
Number of axis |
2 |
axis |
| 16 |
Accuracy of axis D |
±0.005 |
mm |
| 17 |
Accuracy of axis L |
±0.01 |
mm |
| 18 |
Approach speed of axis D |
150 |
mm/s |
| 19 |
Bending speed of axis D |
0.2-50 |
mm/s |
| 20 |
Return speed of axis D |
150 |
mm/s |
| 21 |
Moving speed of axis L |
500 |
mm/s |
Key Components Configuration List
| No. |
Name |
Set |
Manufacture |
| 1 |
CNC Controller(NC Max) |
1 |
EKO(China) |
| 2 |
Touch screen |
1 |
KEYENCE(Japan) |
| 3 |
PLC |
1 |
KEYENCE(Japan) |
| 4 |
Foot switch |
1 |
KACON(Korea) |
| 5 |
Terminal module |
1 |
JRT(China) |
| 6 |
Circuit breaker |
1 |
SCHNEIDER(Germany) |
| 7 |
Circuit breaker Switch |
1 |
SCHNEIDER(Germany) |
| 8 |
AC contactor |
1 |
SCHNEIDER(Germany) |
| 9 |
Relay |
1 |
SCHNEIDER(Germany) |
| 10 |
Relay socket |
1 |
SCHNEIDER(Germany) |
| 11 |
Power supply |
1 |
DELTA(Taiwan) |
| 12 |
Motor driver + Servo motor
(D axis)
|
1 |
SANYO(Japan) |
| 13 |
Motor driver + Servo motor
(L axis)
|
1 |
MITSUBISHI(Japan) |
| 14 |
Sensor |
5 |
OMRON(Japan) |
| 15 |
Ball screw(D axis) |
1 |
AZI(China) |
| 16 |
Screw + Rail (back gauge) |
7 |
HIWIN(Taiwan) |
| 17 |
Bearing |
9 |
NSK(Japan) |
| 18 |
Timing belt |
1 |
OPTIBELT(Germany) |
| 19 |
Frame + Upper table
(Q345E Steel)
|
1 |
EKO(China) |
Main structure and working principle
The machine is a 2-axis (D and L) full-servo press brake, dispense with hydraulic oil, free from the influence of oil temperature variation on the work piece, and the machine tool is more precise, energy saving and efficient than the oil press.
Back gauge system
The assembly unit comprises lifting component, sliding table component, material retaining component, etc. The positioning system of back gauge of the machine tool is all driven by a servo motor through precision screw rod, can quickly reach the specified position, up to micron-level precision, finally realize full automation and improve the working efficiency.
