Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW

Certification
China Shenzhen CODT technology co.,Ltd certification
China Shenzhen CODT technology co.,Ltd certification
I'm Online Chat Now

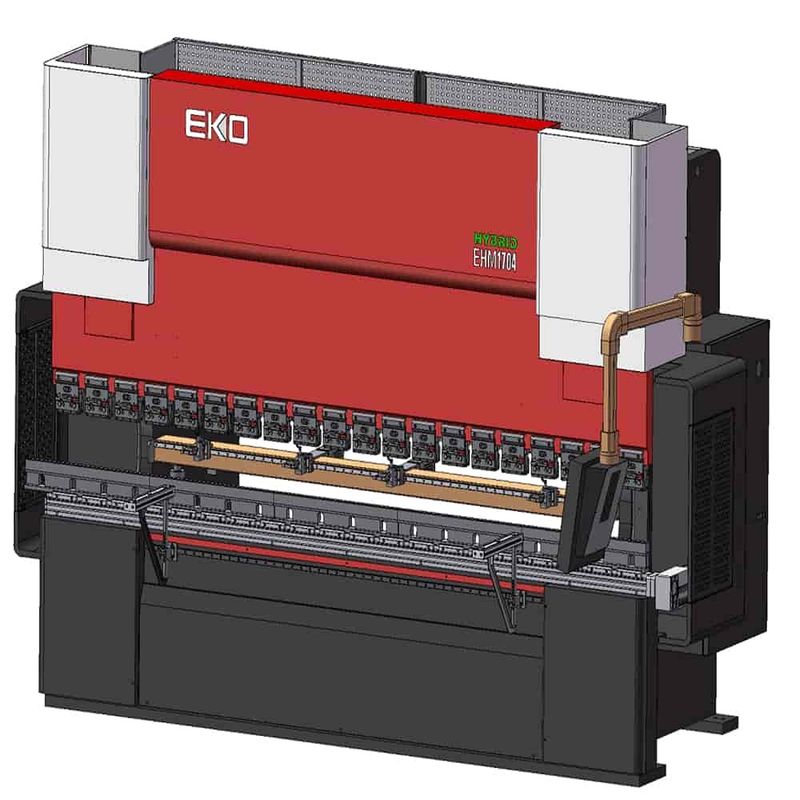

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW
Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW

Large Image :  Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW

Product Details:
Place of Origin: CHINA
Brand Name: eko
Certification: CE,ISO
Model Number: EHM1704
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: wooden package
Delivery Time: 7-30days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 100 sets per day

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW

Description
Brand Name: Eko Automation: Automatic
Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon Steel Application: Metal Sheet Bending
Highlight:

170T hydraulic sheet metal bender

,

hydraulic sheet metal bender 9.2KW

,

170T servo press brake

bending die cabinet cnc machine metal plate hydraulic clutch for bliss servo motor press brake EHM1704

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW 0
Essential details




Model
EHM1704
Length(mm)
4560
Width(mm)
1800
Height(mm)
2900
Opening height(mm)
470
Height in operation(mm)
400
Throat depth(mm)
400
Frame distance(mm)
3140
Lower worktable height(mm)
950
Capacity (T)
170
Bending length(mm)
4000
Stroke(mm)
200
Back gauge stroke(mm)
600
Total power (KW)
9.2
Total weight (T)
13

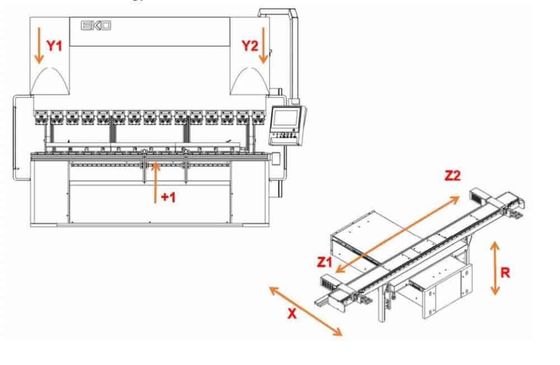

Number of axis
6+1
Accuracy of axis Y1
±0.01
Accuracy of axis Y2
±0.01
Accuracy of axis X
±0.01
Accuracy of axis R
±0.1
Accuracy of axis Z1
±0.1
Accuracy of axis Z2
±0.1
Approach speed of axis Y1/Y2
200mm/s
Bending speed of axis Y1/Y2
0.2-15mm/s
Return speed of axis Y1/Y2
200mm/s
Moving speed of axis X
500mm/s
Moving speed of axis R
62mm/s
Moving speed of axis Z1
700mm/s
Moving speed of axis Z2
700mm/s

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW 1

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW 2

EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system. Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system.
Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.

Eko 170T Servo Press Brake Hydraulic Sheet Metal Bender 9.2KW 3
