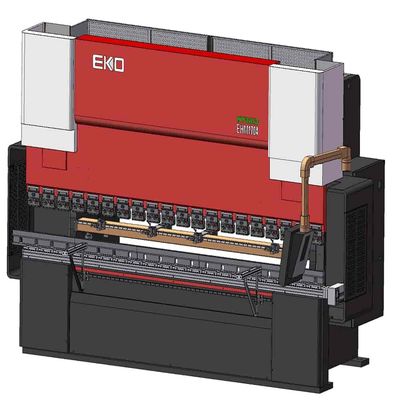

125t 3000mm standard punch u forming mould tool film corrugation mold hydraulic cnc press brake EHM1704
Essential details
|
Model
|
EHM1704
|
|
Length(mm)
|
4560
|
|
Width(mm)
|
1800
|
|
Height(mm)
|
2900
|
|
Opening height(mm)
|
470
|
|
Height in operation(mm)
|
400
|
|
Throat depth(mm)
|
400
|
|
Frame distance(mm)
|
3140
|
|
Lower worktable height(mm)
|
950
|
|
Capacity (T)
|
170
|
|
Bending length(mm)
|
4000
|
|
Stroke(mm)
|
200
|
|
Back gauge stroke(mm)
|
600
|
|
Total power (KW)
|
9.2
|
|
Total weight (T)
|
13
|
|

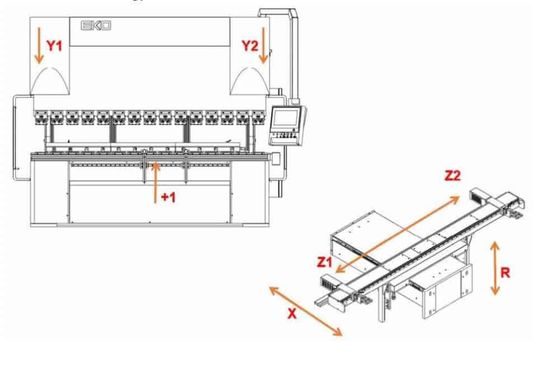

Number of axis
|
6+1
|
|
Accuracy of axis Y1
|
±0.01
|
|
Accuracy of axis Y2
|
±0.01
|
|
Accuracy of axis X
|
±0.01
|
|
Accuracy of axis R
|
±0.1
|
|
Accuracy of axis Z1
|
±0.1
|
|
Accuracy of axis Z2
|
±0.1
|
|
Approach speed of axis Y1/Y2
|
200mm/s
|
|
Bending speed of axis Y1/Y2
|
0.2-15mm/s
|
|
Return speed of axis Y1/Y2
|
200mm/s
|
|
Moving speed of axis X
|
500mm/s
|
|
Moving speed of axis R
|
62mm/s
|
|
Moving speed of axis Z1
|
700mm/s
|
|
Moving speed of axis Z2
|
700mm/s
|
EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system. Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system.
Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.
FAQ:
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis /Conformance; Insurance; Origin, and other export documents where required.
What kind of payment do you accept?
Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.
What is the warranty period of your machine?
For conventional machines, our warranty period is one year. For special non-standard machines, we may provide a 2-3 year warranty, but this should be confirmed with our sales team in advance. During the warranty period, we provide free replacement parts.
Do you accept OEM customization?
Yes, we accept OEM customization, such as customized machine appearance, color, configuration, etc. Of course, the price of customized products should be a little higher. Please contact our business team for details.
