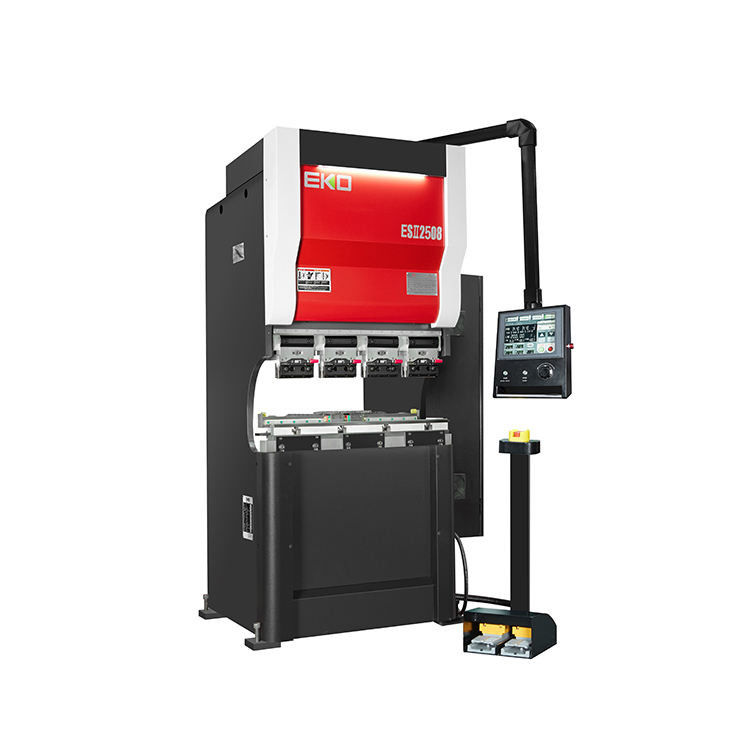

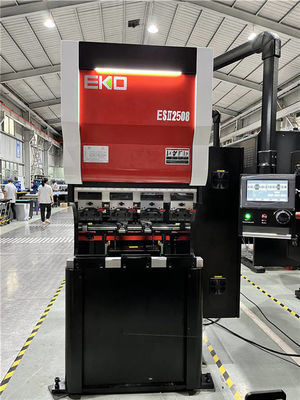

drawing of shares brake press machines spares delem da 66t 6 axis cnc press brake ES2508
| No. |
Name |
Specification |
Measure Unit |
| 1 |
A (Length) |
1600 |
mm |
| 2 |
B (Width) |
1400 |
mm |
| 3 |
C (Height) |
2550 |
mm |
| 4 |
D (Opening height) |
420 |
mm |
| 5 |
E (Height in operation) |
300 |
mm |
| 6 |
F (Throat depth) |
410 |
mm |
| 7 |
G (Lower worktable length) |
960 |
mm |
| 8 |
H (Lower worktable height) |
970 |
mm |
| 9 |
Capacity |
40 |
ton |
| 10 |
Bending length |
1300 |
mm |
| 11 |
Stroke |
150 |
mm |
| 12 |
Back gauge stroke |
500 |
mm |
| 13 |
Total power |
15.2 |
kw |
| 14 |
Total weight |
3.7 |
ton |
| 15 |
Number of axis |
6 |
axis |
| 16 |
Accuracy of axis D1/D2 |
±0.005 |
mm |
| 17 |
Accuracy of axis L |
±0.01 |
mm |
| 18 |
Accuracy of axis Z |
±0.1 |
mm |
| 19 |
Accuracy of axis Y1/Y2 |
±0.1 |
mm |
| 20 |
Approach speed of axis D1/D2 |
150 |
mm/s |
| 21 |
Bending speed of axis D1/ D2 |
0.2-50 |
mm/s |
| 22 |
Return speed of axis D1/ D2 |
150 |
mm/s |
| 23 |
Moving speed of axis L |
500 |
mm/s |
| 24 |
Moving speed of axis Z |
125 |
mm/s |
| 25 |
Moving speed of axis Y1/Y2 |
700 |
mm/s |
Key Components Configuration List
| No. |
Name |
Set |
Manufacture |
| 1 |
CNC Controller(NC Max) |
1 |
EKO(China) |
| 2 |
Foot switch |
1 |
KACON(Korea) |
| 3 |
Terminal module |
3 |
JRT(China) |
| 4 |
Circuit breaker |
1 |
SCHNEIDER(Germany) |
| 5 |
Circuit breaker Switch |
1 |
SCHNEIDER(Germany) |
| 6 |
AC contactor |
3 |
SCHNEIDER(Germany) |
| 7 |
Relay |
1 |
SCHNEIDER(Germany) |
| 8 |
Relay socket |
1 |
SCHNEIDER(Germany) |
| 9 |
Power supply |
1 |
DELTA(Taiwan) |
| 10 |
Motor driver + Servo motor
(D axis)
|
2 |
SANYO(Japan) |
| 11 |
Motor driver + Servo motor
(Back gauge)
|
4 |
MITSUBISHI(Japan) |
| 12 |
Sensor |
11 |
OMRON(Japan) |
| 13 |
Ball screw(D axis) |
2 |
AZI(China) |
| 14 |
Screw + Rail(back gauge) |
10 |
HIWIN(Taiwan) |
| 15 |
Bearing |
15 |
NSK(Japan) |
| 16 |
Timing belt |
2 |
OPTIBELT(Germany) |
| 17 |
Frame + Upper table
(Q345E Steel)
|
1 |
EKO(China) |
. Main structure and working principle
The machine is a 4-axis (D1, D2, Z and L) full-servo press brake, dispense with hydraulic oil, free from the influence of oil temperature variation on the workpiece, and the machine tool is more precise, energy-saving and efficient than the oil press. It is mainly composed of the following components:

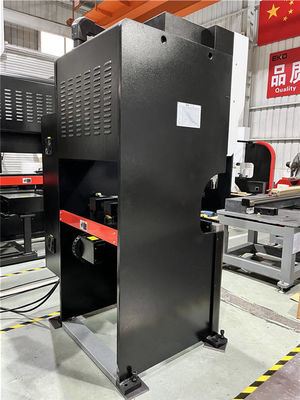

The component comprises a frame, the upper and lower table, transmission screw rod, support bearing group, guide wheel group, etc. The transmission screw rod is connected with the upper table and the frame through bolts, the servo motor drives the screw rod to rotate upper table rapidly with reciprocating motion, for the purpose of bending and forming molds. The two groups of transmission screw rods can be independently controlled, and the angle deviationcan be automatically compensated, so that the angle change of the workpiece is controlled within the tolerance range.

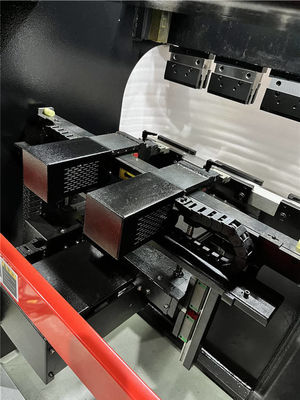

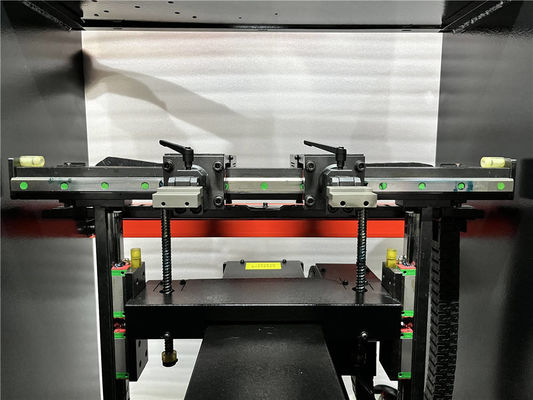

The assembly unit comprises lifting component, sliding table component, material retaining component, etc. The positioning system of back gauge of the machine tool is all driven by a servo motor through precision screw rod, can quickly reach the specified position, up to micron-level precision, finally realize full automation and improve the working efficiency.
The assembly unit consists of the upper and lower mould assembly. The upper mould is fixed on the upper table by the clamping device; the clamping device provided by the device realizes quick loading and unloading of moulds through a mechanism. The clamping device is provided with a wedge trimming mechanism for locally modifying the bending angle so that the angle of workpiece is changed within the tolerance range. The lower mould, together with the mould sea and rail guide, is arranged on the lower table.
