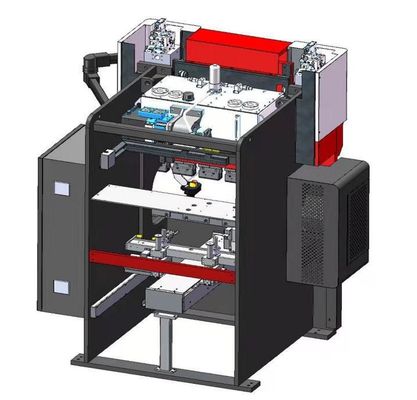

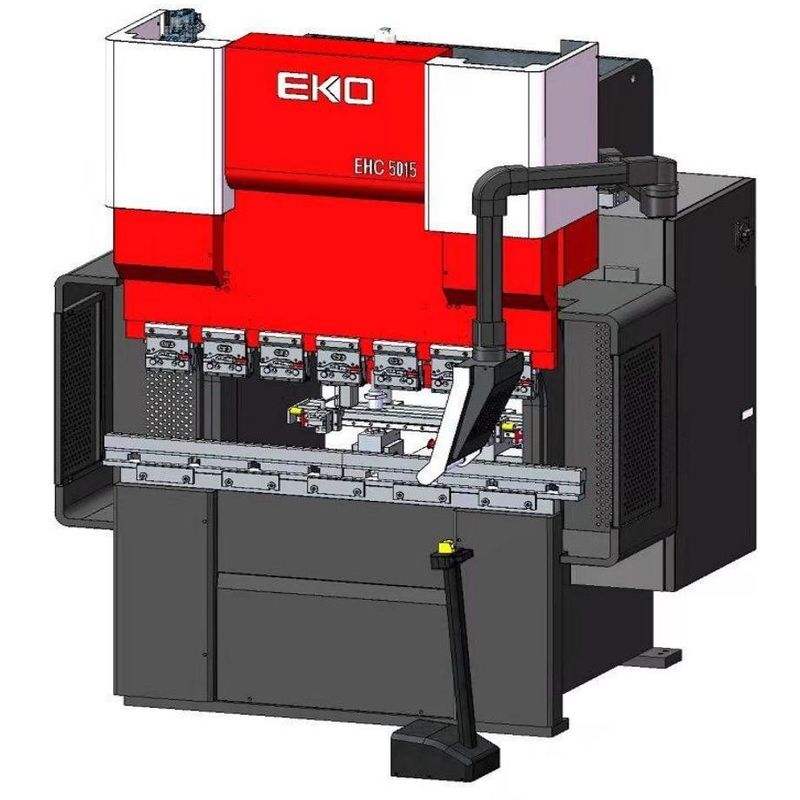

EKO hydraulic 50 ton 1500mm press brake sheet metal with STEP system cnc control bending machine EHC5015
Essential details:
| Model |
EHC5015 |
| Length(mm) |
1980 |
| Width(mm) |
1500 |
| Height(mm) |
2620 |
| Opening height(mm) |
470 |
| Height in operation(mm) |
350 |
| Throat depth(mm) |
290 |
| Frame distance(mm) |
1520 |
| Lower worktable height(mm) |
900 |
| Capacity (T) |
50 |
| Bending length(mm) |
1500 |
| Stroke(mm) |
200 |
| Back gauge stroke(mm) |
500 |
| Total power (KW) |
7.4 |
| Total weight (T) |
3.7 |
| Number of axis |
4 |
| Accuracy of axis Y1 |
±0.01 |
| Accuracy of axis Y2 |
±0.01 |
| Accuracy of axis X |
±0.01 |
| Accuracy of axis R |
±0.1 |
|
Approach speed of axis Y1/Y2
|
200mm/s |
| Bending speed of axis Y1/Y2 |
0.2-15mm/s |
| Return speed of axis Y1/Y2 |
200mm/s |
| Moving speed of axis X |
500mm/s |
| Moving speed of axis R |
62mm/s
|
| |
|
EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system. Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system.
Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.
FAQ:
How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
How long does it take to deliver the machine?
Generally, we will deliver the goods within 30 days. If the machine belongs to non-standard customized products, the time will be longer, but the longest time will not exceed 50 days.
What kind of payment do you accept?
Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.
