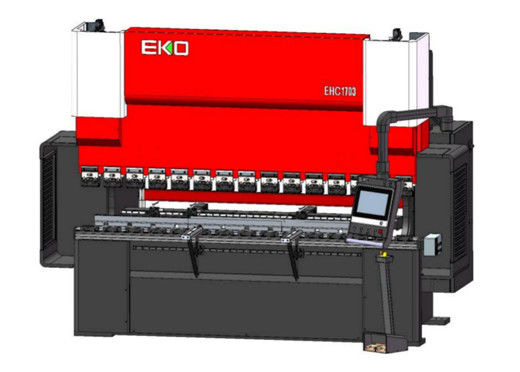

WC67K 125T/3200 6+1 axis cnc sheet metal bending machine Hydraulic manual bending machine cnc press brake EHC1703
Essential details

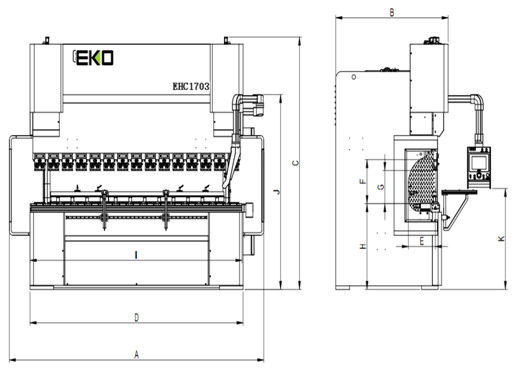

| No. |
Name |
Specification |
Measure Unit |
| 1 |
A (Length) |
3700 |
mm |
| 2 |
B (Width) |
1630 |
mm |
| 3 |
C (Height) |
2780 |
mm |
| 4 |
D (Installation width) |
3080 |
mm |
| 5 |
E (Throat depth) |
390 |
mm |
| 6 |
F (Opening height) |
470 |
mm |
| 7 |
G (Distance between lower and upper table) |
350 |
mm |
| 8 |
H (Upper worktable height) |
950 |
mm |
| 9 |
Capacity |
170 |
ton |
| 10 |
Bending length |
3000 |
mm |
| 11 |
Stroke |
200 |
mm |
| 12 |
Back gauge stroke |
600 |
mm |
| 13 |
Total power |
14.8 |
kw |
| 14 |
Total weight |
8.1 |
ton |
| 15 |
Number of axis |
6+1 |
axis |
| 16 |
Accuracy of axis Y1/Y2 |
±0.01 |
mm |
| 17 |
Accuracy of axis X |
±0.01 |
mm |
| 18 |
Accuracy of axis R |
±0.1 |
mm |
| 19 |
Accuracy of axis Z1/Z2 |
±0.1 |
mm |
| 20 |
Approach speed of axis Y1/Y2 |
200 |
mm/s |
| 21 |
Bending speed of axis Y1/ Y2 |
0.2-15 |
mm/s |
| 22 |
Return speed of axis Y1/ Y2 |
200 |
mm/s |
| 23 |
Moving speed of axis X |
500 |
mm/s |
| 24 |
Moving speed of axis R |
62 |
mm/s |
| 25 |
Moving speed of axis Z1/Z2 |
700 |
mm/s |
| 26 |
Hydraulic oil |
200 |
L |
1. Key Components Configuration List
| No. |
Name |
Set |
Manufacture |
| 1 |
CNC Controller |
1 |
STEP(Italy) / Delem
(Netherlands)
|
| 2 |
Foot switch |
1 |
KACON(Korea) |
| 3 |
Terminal module |
3 |
JRT(China) |
| 4 |
Circuit breaker |
1 |
SCHNEIDER(Germany) |
| 5 |
Circuit breaker Switch |
1 |
SCHNEIDER(Germany) |
| 6 |
AC contactor |
1 |
SCHNEIDER(Germany) |
| 7 |
Relay |
1 |
SCHNEIDER(Germany) |
| 8 |
Relay socket |
1 |
SCHNEIDER(Germany) |
| 9 |
Power supply |
1 |
DELTA(Taiwan) |
| 10 |
Servo hydraulic system(Y axis) |
2 |
EKO(China) |
| 11 |
Motor driver + Servo motor
(Back gauge)
|
4 |
MITSUBISHI(Japan) |
| 12 |
Sensor |
4 |
OMRON(Japan) |
| 13 |
Screw + Rail(back gauge) |
6 |
HIWIN(Taiwan) |
| 14 |
Bearing |
7 |
NSK(Japan) |
| 15 |
Crowning system |
1 |
EKO(China) |
| 16 |
Frame + Sliding table |
1 |
EKO(China) |
| 17 |
Servo reducer |
2 |
HARMONIC (Japan) |
| 18 |
Motion controller |
2 |
STEP(Italy) / Delem
(Netherlands)
|
| 19 |
Key switch |
1 |
KACON (Korea) |
| 20 |
Emergency stop switch |
1 |
KACON (Korea) |
| 21 |
Buzzer |
1 |
KACON (Korea) |
| 22 |
Power Indicator |
1 |
KACON (Korea) |
EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system. Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.EKO Equipment Co.,Ltd. is a high-tech and environment-friendly sheet metal CNC press brake manufacturer. The product technology comes from the "blood" of the international industry.
EKO has four series of high-quality press brake: "ES", "EHII", "ET" and "ESS". There are strong technological strength, innovative equipment development concepts, the professional development team, self-core technology and numbers of new technological innovation patents. The market covers all over the world.
EKO pays attention to the construction of enterprise culture, builds enterprise culture brand, and integrates enterprise culture into products. EKO adhere to the principle of "continuous improvement and continuous innovation" to build a self-contained system.
Adheres to the quality policy of "customer satisfaction is our pursuit, quality assurance is our commitment", which is guided by customer needs and based on high-quality products to ensure product quality. Continue to provide customers with high-precision, high-efficiency, safety, stable, energy-saving, environmentally-friendly sheet metal processing machine.
FAQ:
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when
(1) we have received your deposit,
(2) we have your final approval for your products. If
our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone’s satisfaction.
