130t 8+1 Axis Stainless Steel Carbon Steel CNC Press Brake Machine

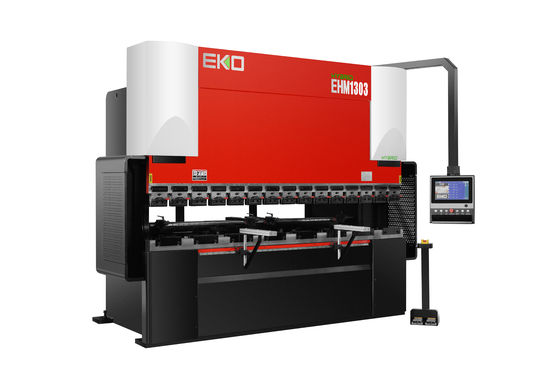

Large Image : 130t 8+1 Axis Stainless Steel Carbon Steel CNC Press Brake Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	EKO
Certification:	CE,ISO
Model Number:	EHII1303

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	wooden package
Delivery Time:	7-30days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	100 sets per day

Contact Now

130t 8+1 Axis Stainless Steel Carbon Steel CNC Press Brake Machine

Description

Material / Metal Processed:	Stainless Steel, Carbon Steel	Automation:	Automatic
Brand Name:	EKO	Servo Motor/ Servo Drive:	YASKAWA
Total Weight:	8.2ton	Total Power (KW):	9.4
Highlight:	130t CNC Press Brake , 8+1 Axis Press Brake Machine , 8+1 Axis CNC Press Brake

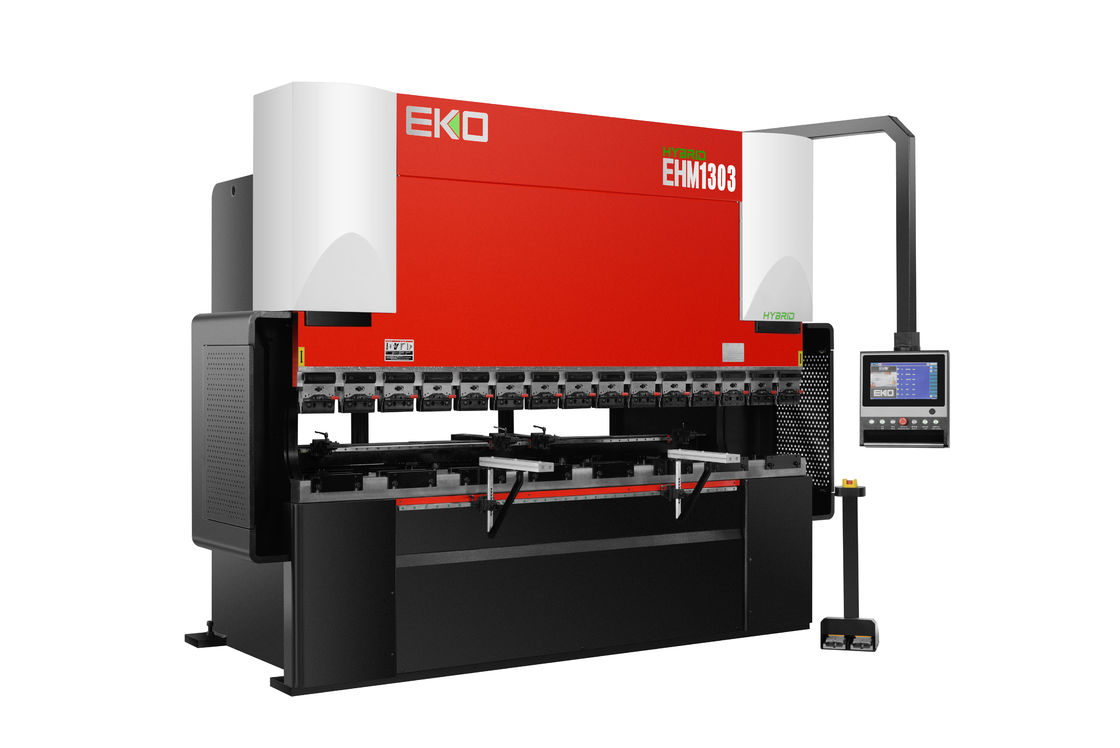

Hybrid Genius 130t Cnc Press Brake With 8+1 Axis Press Brake Machine

Main structure and working principle

The machine is a 8+1 axis (Y1, Y2, X1, X2, Z, R , S1, S2 and crowning) hybrid press brake. Each continuously precise and stable pure servo motor driven high-quality, high-precision press brake has an imported servo motor as its driving motive power, which is the guarantee for precise and stable moving of the equipment. It is mainly composed of the following components:

Frame body

The component comprises a frame, the upper and lower table, transmission screw rod, support bearing group, guide wheel group, etc. The transmission screw rod is connected with the upper table and the frame through bolts, the servo motor drives the screw rod to rotate upper table rapidly with reciprocating motion, for the purpose of bending and forming moulds. The two groups of transmission screw rods can be independently controlled, and the angle deviation, if any, can be automatically compensated, so that the angle change of the workpiece is controlled within the tolerance range.

Parameters

No.	Name	Specification	Measure Unit
1	A (Length)	3700	mm
2	B (Width)	1600	mm
3	C (Height)	2700	mm
4	D (Installation width)	3080	mm
5	E (Throat depth)	450	mm
6	F (Opening height)	470	mm
7	G (Height in operation)	350	mm
8	H (Lower worktable height)	950	mm
9	Frame distance	2570	mm
10	Hydraulic oil	70	L
11	Capacity	130	ton
12	Bending length	3000	mm
13	Stroke	200	mm
14	Back gauge stroke	600	mm
15	Total power	9.4	kw
16	Total weight	8.2	ton
17	Number of axis	8+1	axis
18	Accuracy of axis Y1/Y2	±0.01	mm
19	Accuracy of axis X	±0.01	mm
20	Accuracy of axis R	±0.1	mm
21	Accuracy of axis Z1/Z2	±0.1	mm
22	Accuracy of axis S1/S2	±0.01	mm
23	Approach speed of axis Y1/Y2	200	mm/s
24	Bending speed of axis Y1/ Y2	0.2-15	mm/s
25	Return speed of axis Y1/ Y2	200	mm/s
26	Moving speed of axis X	500	mm/s
27	Moving speed of axis R	62	mm/s
28	Moving speed of axis Z1/Z2	700	mm/s
29	Moving speed of axis S1/S2	700	mm/s

Key Components Configuration List

No.	Name	Set	Manufacture
1	CNC Controller	1	STEP(Italy)/DELEM(Netherlands)
2	Foot switch	1	KACON(Korea)
3	Terminal module	3	FALINK(Taiwan)
4	Circuit breaker	1	SCHNEIDER(Germany)
5	Circuit breaker Switch	1	SCHNEIDER(Germany)
6	AC contactor	1	SCHNEIDER(Germany)
7	Relay	1	SCHNEIDER(Germany)
8	Relay socket	1	SCHNEIDER(Germany)
9	Power supply	1	DELTA(Taiwan)
10	Servo hydraulic system(Y axis)	2	EKO(China)
11	Motor driver + Servo motor (Back gauge)	4	MITSUBISHI(Japan)
12	Sensor	4	OMRON(Japan)
13	Screw + Rail (back gauge)	6	HIWIN(Taiwan)
14	Bearing	7	NSK(Japan)
15	Crowing system	1	EKO(China)
16	Frame + Upper table (Q345E Steel)	1	(China)
